Module 3: Context Retriever

---

What you're building

So far your agent can search static documents. But real questions like "What are my account balances?" need live data that changes constantly.

Context Retriever lets you describe your data once, then auto-generates tools your agent can call at runtime.

	Vector Search	Context Retriever
Data	Static documents	Live business data
Query	"What are the FD rates?"	"What are my account balances?"
How	Searches by meaning	Queries accounts, cards, deposits directly

---

Cloud setup

1. Create a Context Retriever service

1. Go to Context Retriever in the Redis Cloud console.
2. Click Create custom service.

3. Fill in the general settings:

   • Service name: banking
   • Database: select your workshop database

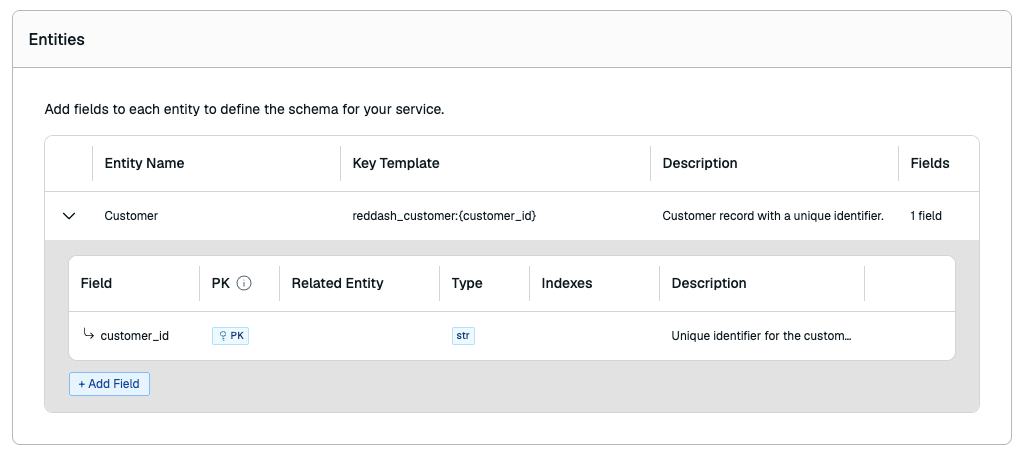

2. Define your first entity

1. Click Entities, then Add Entity.

2. Fill in:

   • Entity name: Customer
   • Key Template: radish_bank_customer:{customer_id}

   The key template tells Context Retriever the pattern behind your Redis keys. From this one pattern, it can find any customer record instantly.

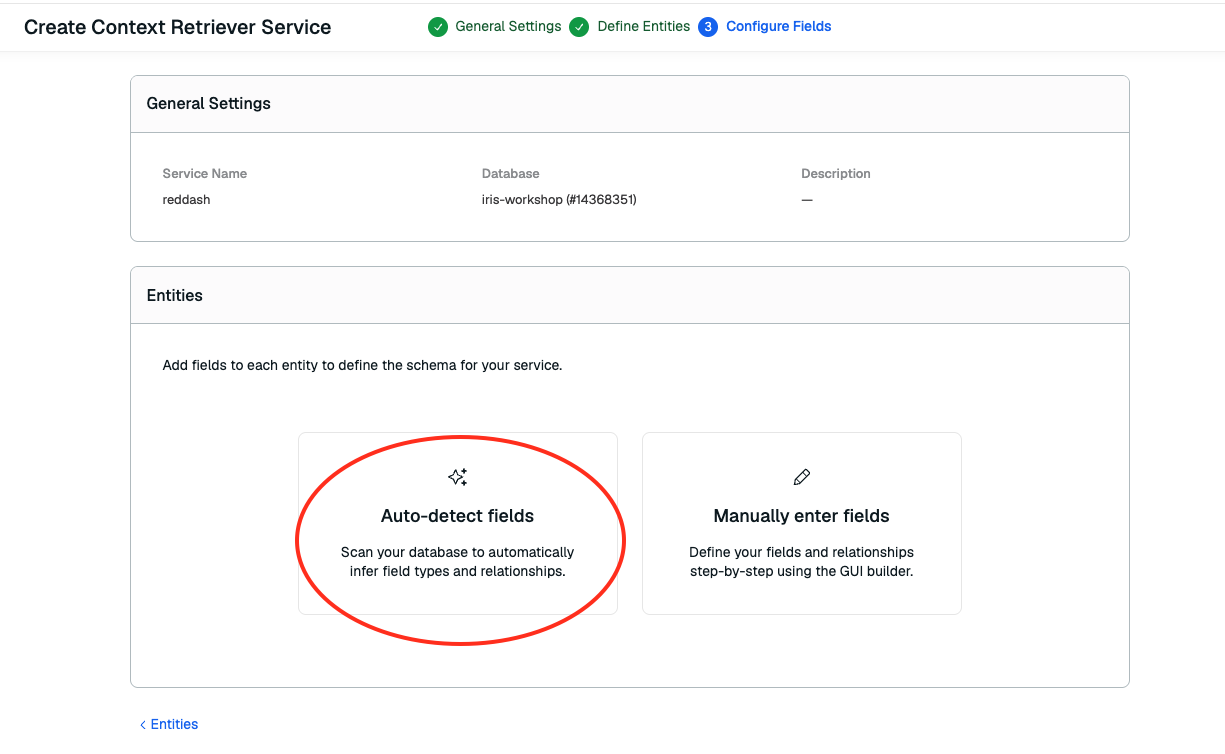

3. Click Fields, then Auto-Detect Fields.



   It just scanned your database and figured out the schema automatically. Field names, types, and which fields link to other entities.



4. Click Create.

3. Save your Surface ID

After creating the service, look at the URL in your browser:

cloud.redis.io/#/context-retriever/<your-surface-id>

Copy everything after /context-retriever/ and paste it in your .env file:

CTX_SURFACE_ID=<your-surface-id>

4. Save your Admin Key

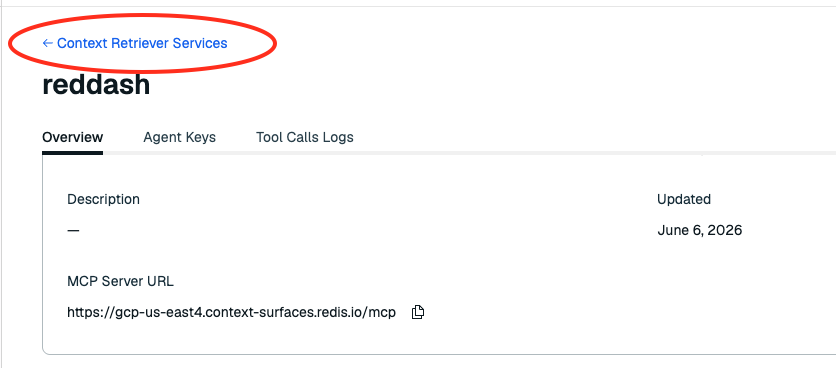

1. Click back to Context Retriever Surfaces.



2. Click the Admin Keys tab and create a new key.



3. Copy the key and save it in your .env file:

CTX_ADMIN_KEY=<your-admin-key>

5. Complete the surface and load data

You defined one entity. The app needs all 10 (Customer, Account, Card, FixedDepositPlan, InsurancePlan, Branch, BranchHours, ProductHolding, ServiceRequest + BankDocument vectorized). Run this to add the rest automatically:

macOS / LinuxWindows (PowerShell)

make setup-context

.\workshop.ps1 setup-context

---

What you just built

Go back to your Context Retriever service in the Redis Cloud console and scroll down.

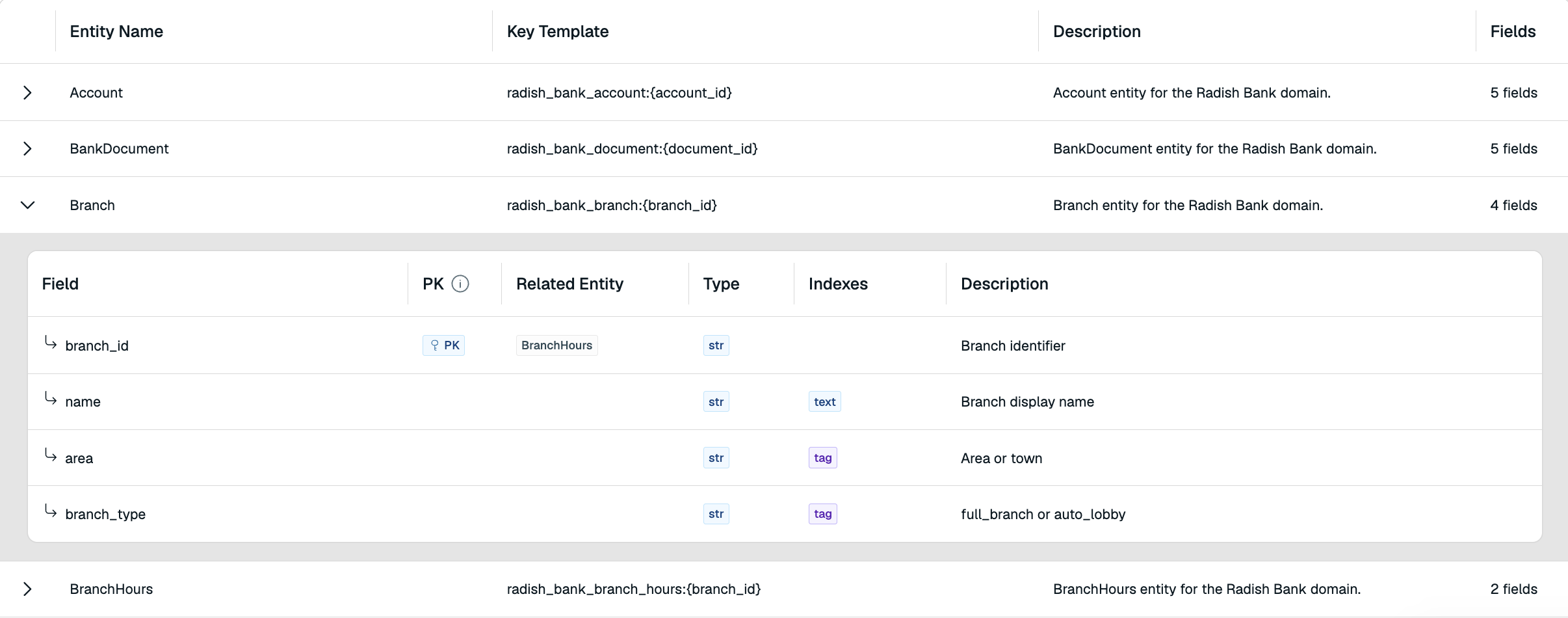

10 entities mapped to your Redis keys with full field definitions and relationships:

Expand any entity. Account.customer_id → Customer. ProductHolding.customer_id → Customer. These relationships let your agent follow the data trail across entities, just like a human banker would.

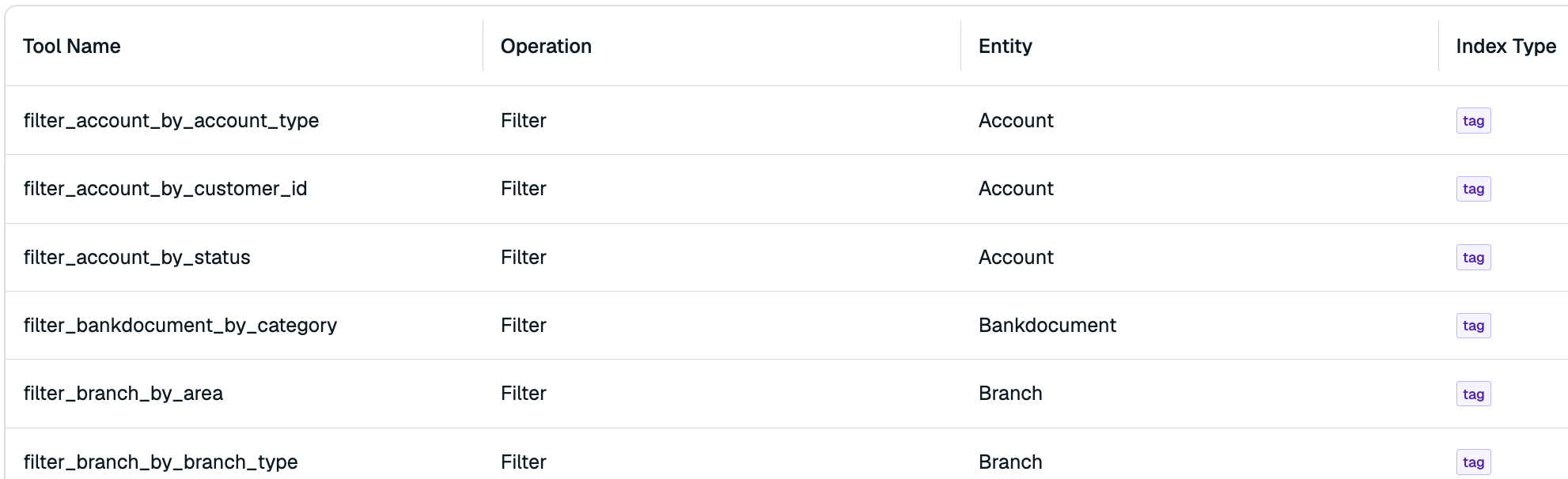

Auto-generated MCP tools your agent can now call:

Redis automatically figured out the best way for your agent to access your business data and created these tools as pathways your agent can call at runtime. filter_account_by_customer_id, get_fixed_deposit_plan_by_plan_id, filter_branch_by_area, and more.

---

Verify

Stop the running server (Ctrl+C) and restart:

macOS / LinuxWindows (PowerShell)

make dev

.\workshop.ps1 dev

Open localhost:3040.

The mode toggle now shows Real-time Context.

1. Switch to Real-time Context mode
2. Ask: "What accounts do I have and what are my current balances?"
3. Watch the activity panel on the right as the agent chains tool calls to pull your accounts, balances, and holdings
4. Try: "What are the FD6 rates?"
5. Try: "Show me my recent service requests"
6. Switch back to Simple RAG and ask the same question to see the difference
